A reflection of the modularity
and crosscutting improvements made to design patterns by developing them in
AspectJ.
View PDF
This essay is a response to
the paper:
Design
Pattern Implementation in Java and AspectJ
Is there an improvement in the cross-cutting
nature of design patterns when they are implemented in AspectJ?
Cross-Cutting and
Aspects
Aspect orientated programming involves the
separation of concerns within an application so that they do not clutter or cut
across one other. The Wikipedia definition [5] states:
“In computer
science, cross-cutting concerns are aspects
of a program, that do not relate to the core
concerns directly, but are needed for proper program execution.”

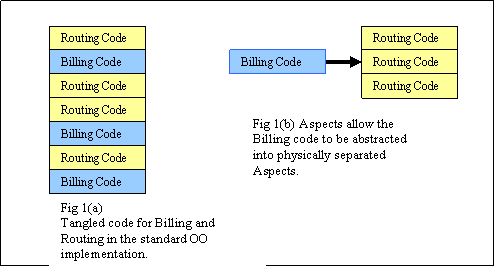

As an example let us consider a
telecommunications application. This might have a core concern of “routing
calls”, but code for other operations such as “timing” and “billing” those
calls might be intertwined in the whole “routing” object hierarchy. Here the
“billing concern” overlays the “routing concern” meaning that the code that
implements each is crosscut (Fig. 1(a)). This intertwining of code for separate
concerns, know as Cross-Cutting, cannot be removed with regular programming
methods.
Aspect Orientation allows the extraction of
duplicated calls from multiple positions in the control flow into single Aspect
commands that are woven back in at compile time. This leaves client code free
of tertiary concerns that would otherwise cut across it (fig. 1(b)).
Patterns and Roles
Hannemann et al have observed that there are
cross-cutting relationships between different roles within many of the GoF [2]
patterns. They segregate these roles into two types. Firstly “Defining Roles”
are those for which the code is completely encapsulated in the pattern itself.
A good example is the Façade pattern which has no influence on clients other
than to provide an interface with which they can interact. Such roles leverage
little from an Aspect Orientated approach as their encapsulation means they
rarely crosscut client code. The second role type observed by Hannemann are
“Superimposed Roles”. These generally see improvements with the introduction of
Aspects due to there being cross-cutting between the different roles which are
superimposed as in the telecommunications example above.
Cross-Cutting
of between Pattern and Participant Classes
The first and probably most fundamental cause of
cross-cutting within the standard OO (non-Aspect) patterns arise due to the
superposition of the pattern role over the primary role of the participant
class, which is likely to be something completely unrelated.
For example the class that is participating as a
subject in the Observer Pattern is likely to have other responsibilities such
as a regular programming task like “being a timer”. This class has a
superimposition of roles, the role of being a Subject in the pattern and the
role of “being a timer”. Hannemanns et al refer to this as the “Participants
having their own responsibilities and justification outside the pattern
context” [7]. The manifestation of this in the regular java implementation is a
plethora of notifyObservers() methods
within subject classes. Within the Aspect implementation however the code is
modularised into a single class leaving the Subject with no knowledge of its
participation in the pattern at all.
Such cross-cutting concerns are also demonstrated
well by the Chain of Responsibility Pattern. This pattern allows an object to
send a command without knowing what objects will receive it. The benefits due
to cross-cutting are again revealed due to the concern of the pattern being
separated from the concern of the participant classes i.e. each participant in
the chain need not be aware of its role in the pattern.
The key point is that code modules for roles such as
Subjects have no interest in containing code that facilitates their behaviour
in the pattern. Hence the presence of any
such code for this role is of no relevance and this crosscuts their primary
role.
Hanneman et al classify this kind of cross-cutting
further into two subsets:-
1.
Roles that Crosscut Participant
Classes: This defines the
concept of different roles being intertwined as described above. Examples are the cross-cutting of the pattern
roles, such as being a Subject in the Observer or Leaf in the Composite etc,
with the base role of the participant class such as “being a timer”.
2.
Conceptual Operations Cross-Cutting
Methods in one of more Classes:
This refers to the actual implementation of ‘one to many’ relationships across
multiple classes which generally result from (1). This level of cross-cutting
is often modularised into a single class in the Aspect implementations. In the
Observer example this is typified by the modularisation of the scattered
refresh() calls into a single subjectChange() pointcut.
Cross-Cutting
of Shared Participants between Multiple Pattern Instances
The second level of cross-cutting pointed out by
Hannemann et al lies in the improvement found when multiple patterns (or
pattern instances) act upon the same subjects. For example there may be two
instances of a pattern which each treat the same
class or method with different roles. This “Pattern
Composition” introduces additional cross-cutting issues.
For example considering multiple instances of the
Observer pattern, certain participant classes may behave as Observer in one
pattern instance and Subject in another. This cross-cutting over shared
participants can be removed in the AspectJ implementation as each of the
pattern instances access a single set of mapping points in the programs
execution via Point cuts.
Cross-Cutting
and the Classification of Roles in Patterns
Aspect orientated programming is driven by the
desire to split code that applies to different concerns so that it does not
crosscut the code of the core concern. This is typified by the superposition of
the pattern role and participant role in the Observer pattern. The Observer
example is successful because there is a clear argument for the roles imposed
by the pattern being logically separate from the core concern of most Subject
and Observer classes. Hanneman et al describe the various roles within the GoF
patterns but there is no discussion of which concerns those roles really lie
in.
The next question I will try to explore is: Are the
roles observed in the patterns really in different areas of concern to the
roles of the participant classes?
To explore this let us look at the Composite
pattern. Put briefly the composite pattern supplies a mechanism through which
you can compose a single object from a collection of other objects to produce a
composition of behaviour. Hannemann et al present this pattern via a fictitious
file system where a directory can be composed of files and other directories.
The composite component allows each element to be treated in a similar way i.e.
the pattern provides the mechanism that allows files and directories to be
added to other directories etc.
The view put forward by Hannemann et al is that the
pattern has two superimposed roles, the Composite and the Leaf. Cross-Cutting
of roles can occur when the role of “being a Leaf” crosscuts the role that each
class is designed to do, in this case “being a file or directory”. The problem
arises that whilst this is true in the case of the Observer pattern, in many
pattern implementations the pattern is tied to the same concern as the
implementing class.
In this file/directory example it could be said that
the file should not need to know about the various methods that facilitate its
behaviour and position in the file system. However another argument might be
that the position of a file in a file system is likely to be considered
pertinent to the core concern of being a file.
The Strategy pattern is another example with
questionable disparity between roles simply due to the role of the pattern
being intrinsically tied to the role of the participants. Hannemann et al use a
sorter as an example which can be initialised with either a bubble or linear
sort strategy. The aspect implementation removes the setting of the strategy to
an aspect so that the core code for the sorter is not crosscut by it. However
it is difficult to think of a situation where the sorter would lie in a
separate concern to the sort type. Put in a more abstracted fashion the
strategy for a class may not always exists in a separate concern to that of the
class itself.
This is not to say that Hannemann et at are
incorrect. They have defined roles within patterns and described methods
through which the cross-cutting between those roles and the roles of
implementing classes can be reduced.
However my opinion is that cross-cutting between
patterns and participants should only be considered on an instance by instance
basis where the core concern of the implementing class is known. Only then can
you decide whether the pattern roles are truly distinct from the core concerns.
Furthermore patterns, such as the strategy pattern and others, imply a usage
that connects them intrinsically to their implementation. In such cases the
modularisation of cross-cutting concerns in the AspectJ implementations would
not really be separating truly disparate roles.
In conclusion there is clear benefit in
cross-cutting behaviour in some of the patterns suggested. However for the
removal of cross-cutting to be of real benefit there needs to be an orthogonal
relationship between the roles of the intertwined code streams. Roles such as
the Subject in the Observer pattern are clearly orthogonal to whatever that
participant class might be. However most of the other patterns do not have the
luxury of such clear distinctions in their roles.
Hence I feel there is still an open question as to
whether Hannemann et al can really claim a general cross-cutting improvement.
The very premise for Aspect development is the physical segregation of roles or
concerns within an application. Unfortunately whilst there is an almost unilateral
improvement in modularity throughout the pattern suite true cross-cutting
enhancement is only confirmed in a select few.
Is there an improvement in
modularity of design patterns when they are implemented in AspectJ?
One of the overwhelming advantages of Object
Orientated programming is its ability to increase modularization. However the
Object Orientated framework itself imposes limits on the level that can be
supported. Software engineers have put considerable effort into furthering this
aim within the OO environment using the available tools [3]. This has lead to
the introduction of patterns that encapsulate solutions to recurring problems
in abstracted reusable forms. These patterns increase modularization by
removing code from multiple implementations and into the pattern itself. But
there is a limit to how far this approach can go.
Aspects extend this aim to allow
modularization, not just at the level of program flow, but also across
different areas of concern within the application. Code can be abstracted into
common aspect modules that would otherwise cut across several application
roles. We will explore the increase in modularity via the use of Aspects in the
Observer pattern.
The Observer Pattern,
Implemented in Java

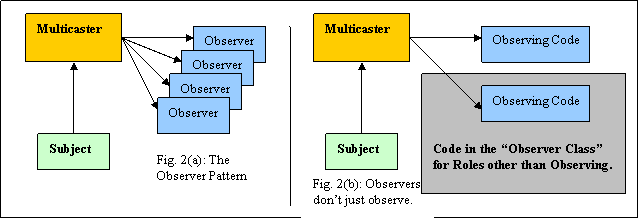

The Observer pattern defines a one-to-many
relationship between a Subject (or subjects) and any number of Observers. There
are thus two roles; Subject and Observer.
Should the subject object change, all Observers are notified
automatically. This is analogous to receiving football result texts on your
mobile phone. You are the Observer and your football team is the Subject. You
wish to be notified whenever your team scores a goal.
To initiate the process the Observer must first
register for notifications. In our example you would ask your service provider
to send you updates. Whenever your team scores a goal their state changes and
your network provider would send you, and everyone else that is registered, a
text that notifies you of the change in score. This corresponds to the action
of the Multicaster whose
responsibility is to maintain the one to many relationships between Subject and
the many observers, and notify them of state changes (fig 2(a)).
Physical Differences in
Observer when Implemented in Aspects
We note that it is possible to abstract the
responsibilities within the Observer pattern into two parts.
(1) The Base Abstraction: The base abstraction can be considered to
consist of
- The
framework of the pattern.
- The
requirement to have a Subject and Observer.
- The
mapping between them.
- The
facility to update them when they change.
(2) The Pattern Instance: The second responsibility is the physical
implementation of the pattern instance which designates those specific Subject and Observer classes
involved.

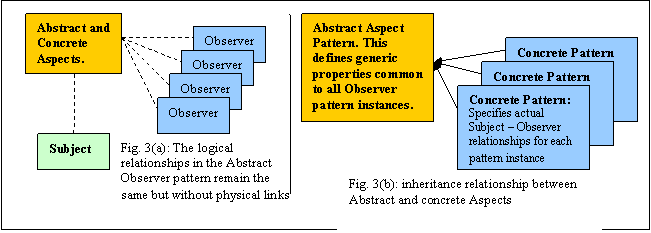

Hannemann et al make use of this to split their
implementation of the Observer pattern into two sections. The abstract aspect
covers the contractual obligations (i.e. necessitating the addition of specific
subject and observers) and the notification mechanism. I will denote this the
“Abstract Aspect Pattern”. This “Abstract Aspect Pattern” is then extended by a
“Concrete Aspect” which defines the specific relationship between Subject and
Observers of a specific type via the pattern i.e. the specific methods to be
observed and those to be notified are defined here on a case by case basis (fig
3(b)).
Modularity
Improvement within the Aspect Code.
The first modularity improvement lies within
the aspect code itself where responsibilities that are generic to the pattern
can be abstracted to single, common place. This is the reason for the “Abstract
Aspect Pattern”. In the Hannemann et al
implementation they abstract out the responsibility for maintaining the
observers list, notifying observers and defining the classes that take on the
observing and subject roles. Thus no
matter how many Observer patterns are used between different Subject and
Observers the same “Abstract Aspect Pattern” can be used, clearly increasing
the modularity and reusability of the implementation.
Modularity
Improvement between Aspect and Client Code Alone.
(i) Modularity
through Abstraction
The second modularity increase comes from the
fact that the pattern utilises the ability of AspectJ to represent crosscut
concerns in single program units. As the “Abstract Aspect Pattern” and
“Concrete Aspect” are implemented as Aspects their source code exists
separately from the physical implementations of the Observer and Subject
classes. This allows modularisation of the cross-cutting concerns within the
standard pattern so that all the distributed calls to methods like refresh()
and notifyObservers() in the Java implementation can be modularized into
single aspect classes, in this case the updateObserver() and subjectChange()
calls in the Concrete Aspect. This modularization is a direct result of aspect
based operators such as pointcuts.
(ii) Modularity though
Dependency Reduction

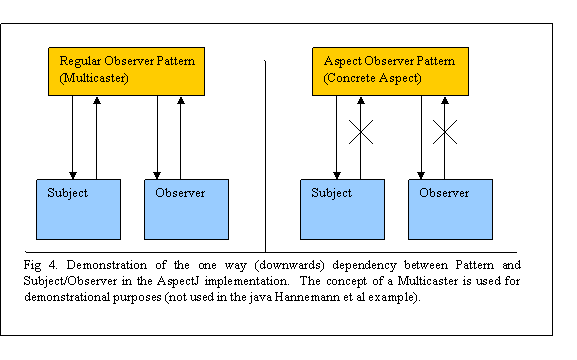

The Hannemann implementation increases
modularity by further reducing dependencies within the client code. This is
done by inverting the flow of control
within the pattern so that only a downward dependency from the pattern to the
client remains. Put another way; the pattern has an implicit dependency on the
client code (the Subject and the Observer) but the client code has no reverse
dependency back on the pattern (see Fig 4). This has the additional benefit
that it increases (un)plugability in the client code. The client has no
awareness of it’s inclusion in the pattern and hence it can be added to and
removed from its role in the pattern at will, but the operation of the pattern
is the same.
Summary
We have seen that there is a clear improvement
in the modularity of the AspectJ implementation of the Observer pattern. This
is represented over three levels reaping benefit through textual localisation,
removal of code from participant classes and abstraction to common aspects.
From an implementation point of view these factors allow the pattern to exist in
a neutral manor, most notably, without any dependencies from the participant
classes back onto the pattern itself. Considering that the Observer pattern is
used frequently for communications around application frameworks such
dependency removal is extremely useful. ‘Framework’ concerns can be completely
separated from client code and this in turn facilitates a true separation of
concerns.
References
[1] J.
Hannemann and G. Kiczales, “Design Pattern Implementation in Java and AspectJ
”, in Proceedings of the 17th Annual ACM conference on Object-Oriented
Programming, Systems, Languages, and Applications OOPSLA’02), pages 161-173,November 2002.
[2] E.
Gamma, R. Helm, R. Johnson and J. Vlissides, “Design Patterns. Elements of
Reusable Object-Oriented Software”. Addison-Wesley, Reading, MA,
1995.
[3] G.
Booch, "Object-oriented development," IEEE Trans. Software Eng., vol.
SE-12, pp. 211-221, Feb. 1986.
[4] http://www.cs.wm.edu/~coppit/csci435-spring2004/lectures/17-cross-cutting-concerns.pdf
[5] http://wikipedia.org/
[6] - [1] -
Section 4.1.1
[7] - [1] - Section 5.1
[8] - [1] - Section 4.1.3
